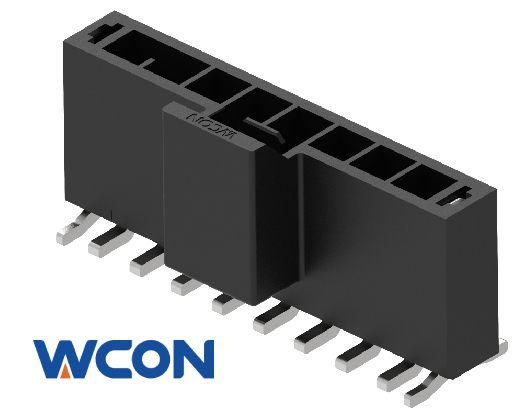

WF2508-1WMHXXXXXX1
线对板连接器，公座，立式SMT，单排，黑色
Quick Inquiry
2D Drawing(PDF)
3D Model
Packaging Specification
| Rated Voltage | 250 V/AC,V/DC | Operation Temperature | -40°C - +125°C | |
| Rated Current | 3 AMP | Contact Material | 铜合金 | |
| Contact Resistance | 20 mΩ Max | Insulator Material | 热塑性塑胶 | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | Sn | |
| Withstand Voltage | 1500 V/AC,V/DC | Packaging | Tube,Reel | |
RoHS
铜合金
REACH
铜合金
-
DescriptionPart Number
-
Wire To Board Connector,Housing,Single Row
