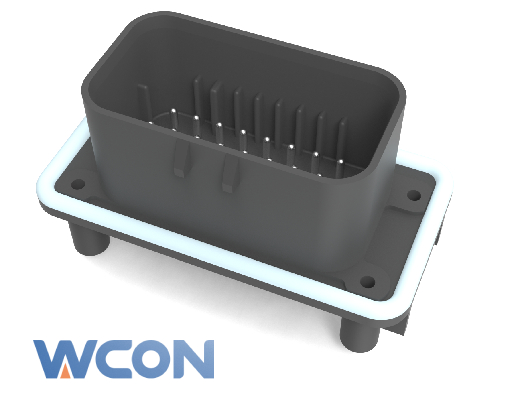

74040-3MS023ABXXNAX（W）
4.0mm间距，公头，垂直，通孔，三排，镀锡，带柱，标准型
Quick Inquiry
| Rated Voltage | 250 V/交流 | Operation Temperature | -40°C - +125°C | |
| Rated Current | 8 AMP | Contact Material | 黄铜 | |
| Contact Resistance | 10 mΩ Max | Insulator Material | PBT | |
| Insulation Resistance | 5000 MΩ Min | Contact Plating | 锡 | |
| Withstand Voltage | 1000 V/交流 | Packaging | 托盘 | |
RoHS标准
顺从的
达到
顺从的
-
DescriptionPart Number
-
4.0mm 间距，外壳，正锁，23 个电路
-
4.00mm间距，母触点
