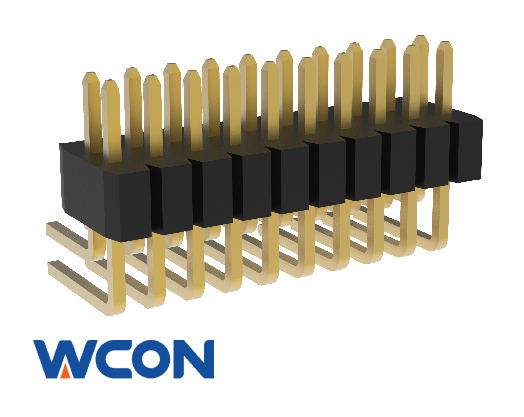

1515-12XXXXRXXXCA01
排针连接器，水平，通孔，双排，1.50mm高度，金或锡镀镍，黑色
Quick Inquiry
| Rated Voltage | 60 V/交流 | Operation Temperature | -40°C - +105°C | |
| Rated Current | 0.75 AMP | Contact Material | 黄铜 | |
| Contact Resistance | 30 mΩ Max | Insulator Material | PA9T型 | |
| Insulation Resistance | 1000 MΩ Min | Contact Plating | 金锉 | |
| Withstand Voltage | 500 V/交流 | Packaging | 管子，托盘 | |
RoHS标准
顺从的
达到
顺从的
